Elcometer 122 Testex® Replica Tape
In stock
Technical detailSpecifications and technical detail for this instrument are on bamr.co.zaAbout Elcometer 122 Testex® Replica Tape

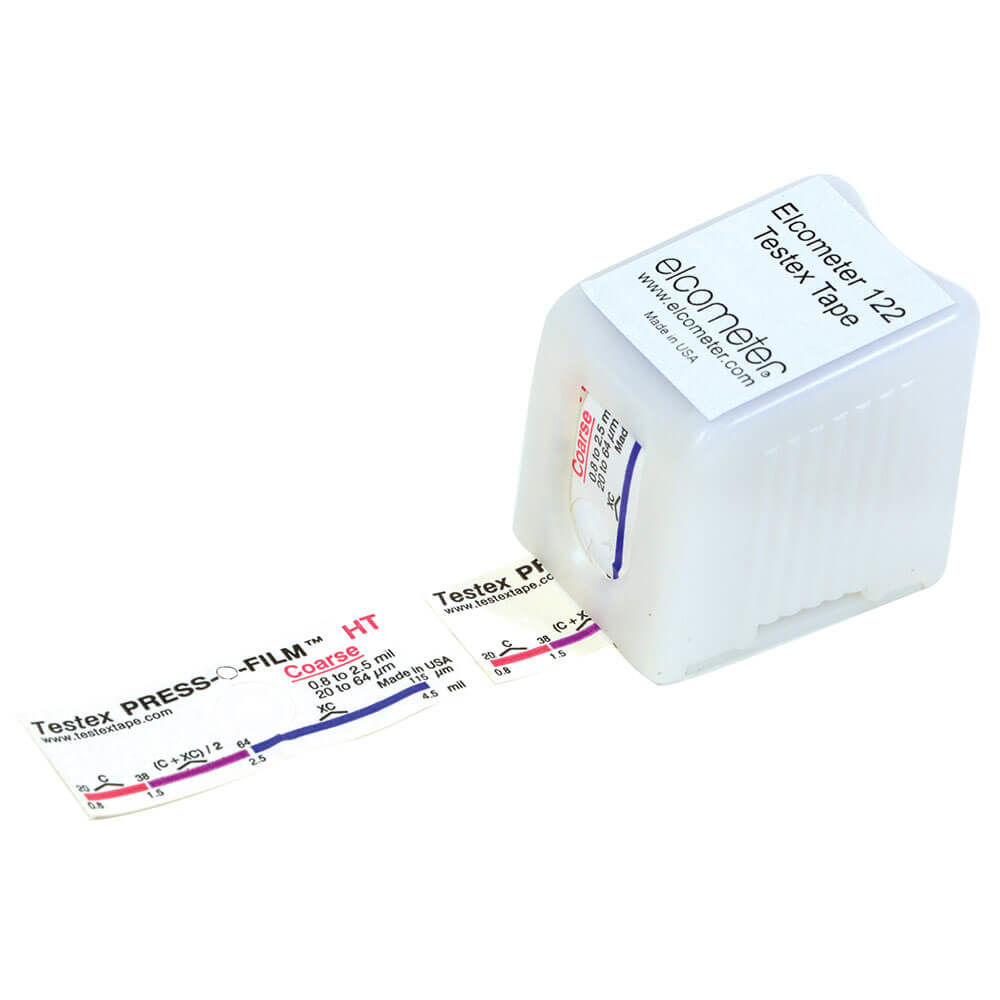

The Elcometer 122 Testex® Replica Tape is designed to provide a permanent mould of the surface profile, which can then be measured using a thickness gauge. ( 50 tests in each Replica Tape roll)

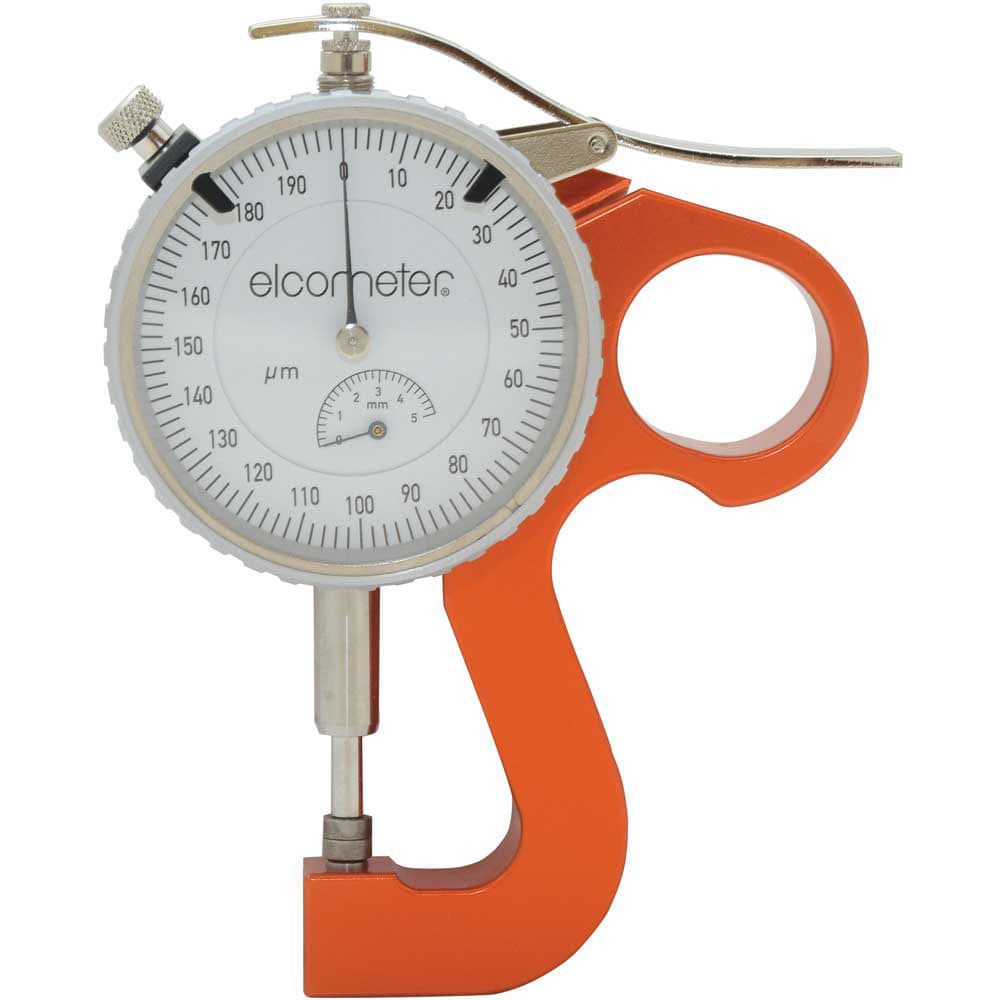

Elcometer 122 Testex® Tape consists of foam with a non-compressible backing. The foam side is rubbed into the surface providing a permanent mould of the peak-to-valley profile. The profile of the surface can then be measured using the Elcometer 124 Thickness Gauge.
Elcometer 122 Testex® Replica Tape is available in four profile ranges. It is important that the tape grade chosen is reflective of the profile being measured.
- For surface profiles between 38 & 115µm (2.5 & 4.5mils): X-Coarse Tape
There are 50 tests in each Replica Tape roll.
The Elcometer 122 Testex Replica Tape can be used in accordance with:
- ASTM D 4417-C
- BS 7079-C5
- ISO 8503-5
- NACE RP0287
- SSPC PA 17
- US Navy NSI 009-32
- US Navy PPI 63101-000
Standards not in bold have been superseded but are still recognised in some industries.
No reviews yet for Elcometer 122 Testex® Replica Tape.
Write your own review
Only registered users can write reviews.
Ask about Elcometer 122 Testex® Replica Tape and the team will pick it up. Quote the part number ELC-E122----C1 and we will know exactly which instrument you mean.
