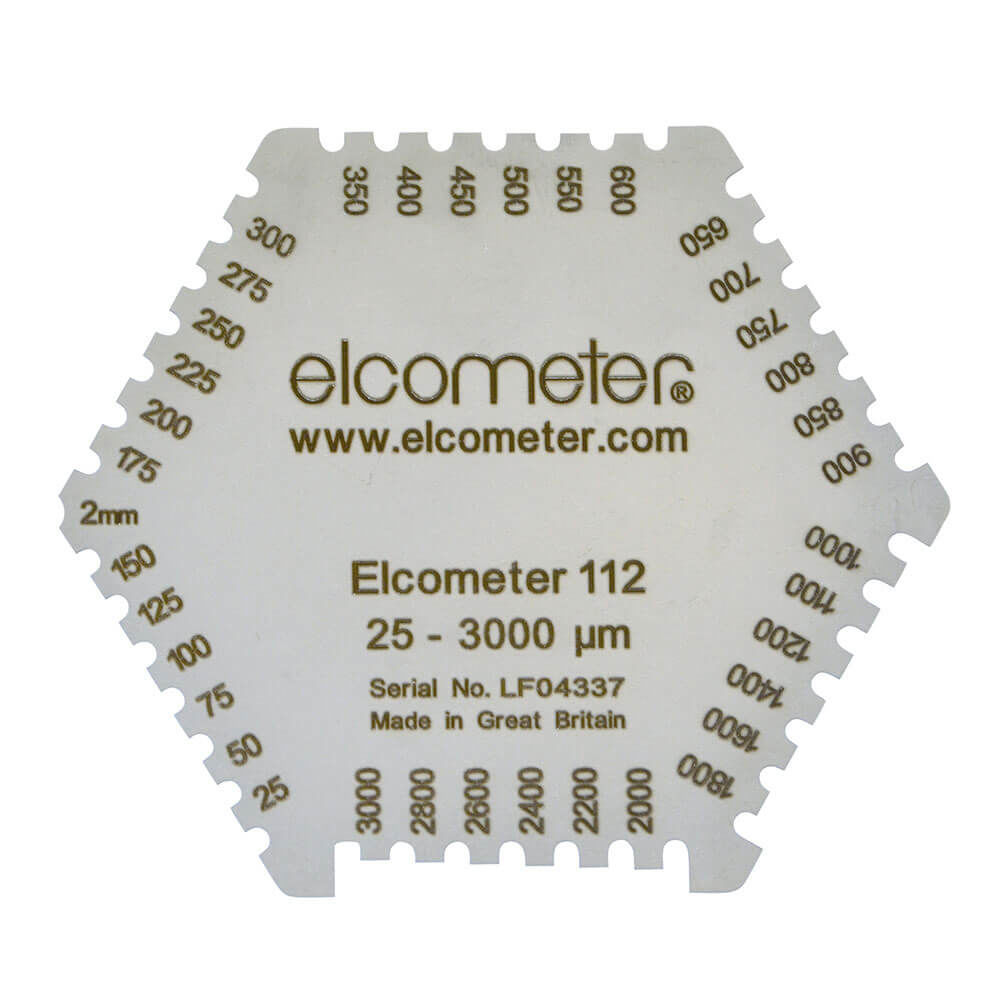

Elcometer 112 Aluminium Wet Film Comb: 25-3000µ

Manufacturer: Elcometer
SKU: ELC-B112AL---
R180,00 excl VAT
These hexagonal precision formed stainless steel wet film combs are long lasting, reusable and supplied in a range of thicknesses measuring up to 3000μm. These six-sided combs vary in size, giving either 24 or 36 measurement steps, depending upon the comb, thus providing increased accuracy.
+ -

These punched aluminium combs offer the user a low cost method of measuring the wet film thickness.

The Elcometer 112AL, being punched from aluminium, is not as accurate as precision formed stainless steel wet film combs and has a shorter lifespan.

The Elcometer 112AL can be customised with your logo. Please contact us for further details.

Technical Specifications

Part NumberRangeValuesCertificate
K0003236M20120 - 370µm20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 150, 170, 190, 210, 230, 250, 270, 290, 310, 330, 350, 370µmο
K0003236M20225 - 2000µm25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000µmο
B112----1B25 - 3000µm25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000µmο
Accuracy±5% of marked value or 3μm (0.12mil) whichever is the greater
Dimensions and WeightElcometer 3236M201/M20353 x 50 x 1mm (2.09 x 1.97 x 0.04”), 10g (0.35oz)
Elcometer 3236M202/M20477 x 90 x 1mm (2.95 x 3.54 x 0.04”), 22g (0.77oz)
Elcometer 11275 x 65 x 1mm (2.95 x 2.54 x 0.04”), 20g (0.7oz)
Packing List

Wet Film Comb, storage case and operating instructions

ο Optional Calibration Certificate available
