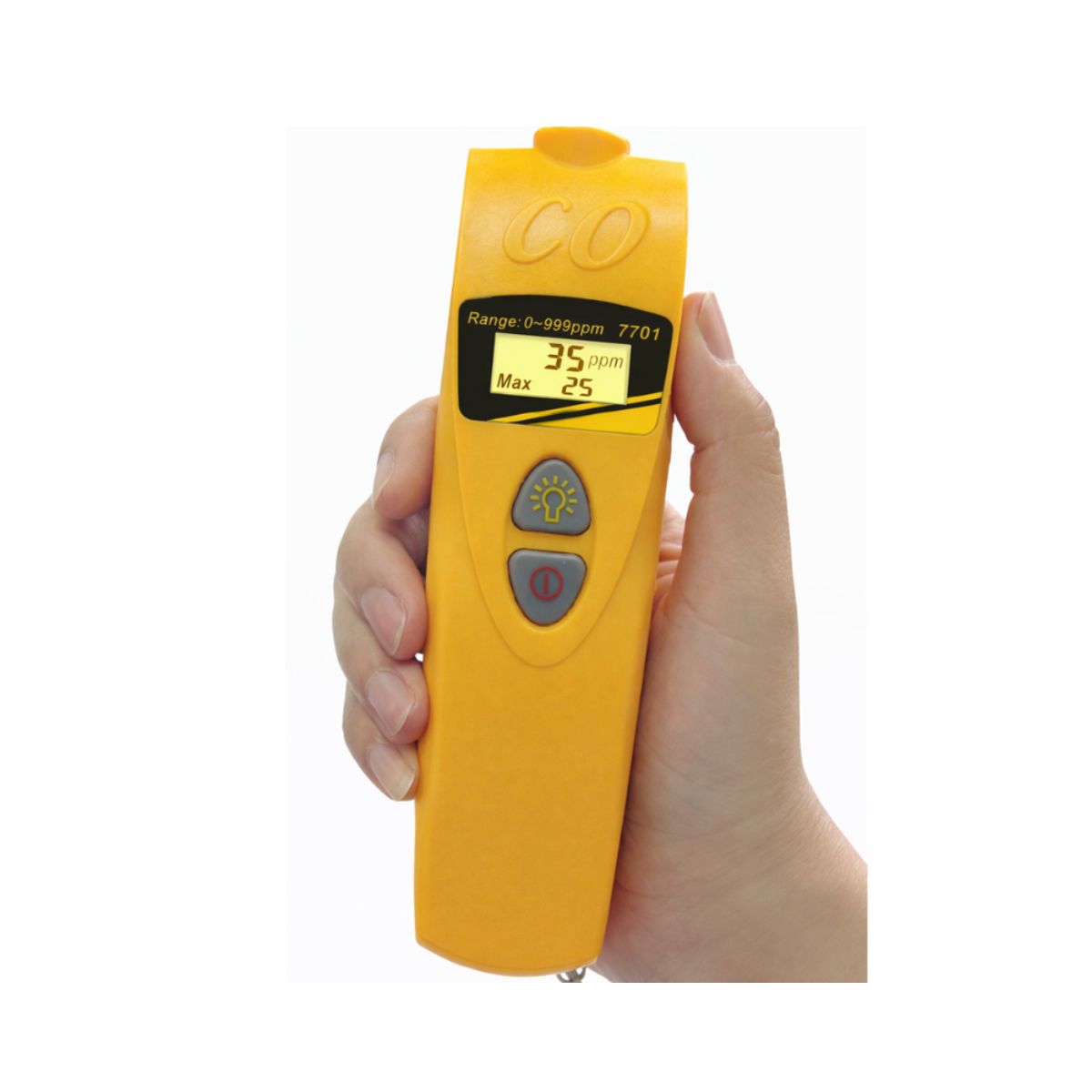

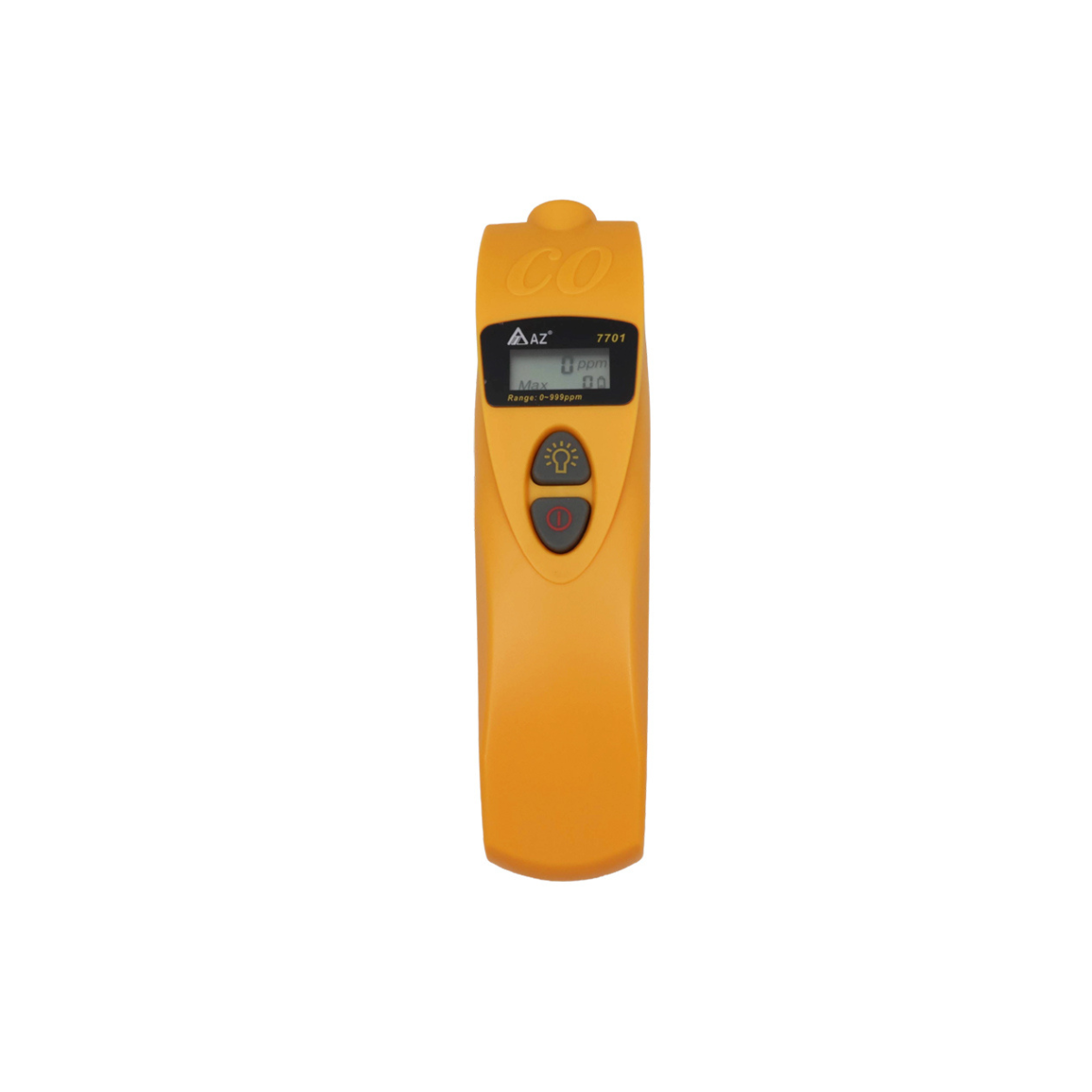

The AZ 7701 CO Meter is uniquely designed to measure Carbon Monoxide concentrations in ppm. Featuring a back-lit digital LCD screen, this pocket-sized instrument is ideal for taking the CO values in enclosed spaces such as cars, hospitals, factories and other areas where air quality is of great importance.
Users can set and adjust CO Concentration Alarm for different purposes, making this unit adaptable to your needs. The AZ 7701 CO Meter can be calibrated by the user for added convenience.
Features
Measuring Carbon Monoxide Levels
Parts Per Million (PPM)
Symptoms and applicable standard
0-1
Normal background levels
9
Maximum indoor air quality level: Maximum allowable concentration per ASHRAE residential standards 62-1989 for living area.
25
Maximum limit of 8 hours of continuous exposure per California OSHA workplace standards.+6
35
Maximum 8 hours average exposure level per US OSHA workplace standards
50
Maximum concentration for continuous exposure in any 8 hours average level per OSHA standards.
100
Remove employees from enclosed space if the CO concentration exceeds 100ppm per OSHA exposure limit.
200
Mild headache, fatigue, nausea and dizziness within 2-3 hours.
400
Frontal headache, life threatening after 3 hours. Maximum concentration in flue gas per the US EPA and AGA standards.
800
Dizziness, nausea, convulsions, death within 2-3 hours.
1600
Nausea within 20 minutes; death within 2-3 hours
Technical Specification
Model
AZ 7701 CO Meter
CO Range
0-999 ppm
CO Resolution
1 ppm
CO Accuracy (at 20±5℃, 50±20%RH)
±20% at 0-100 ppm; ±15% at 100-500 ppm, other ranges are not specified
CO Response Time
Responds within 60 seconds
LCD Size
26(H) x 11(W) mm
Meter Size
175(L) x 47(W) x 28(H)mm
Operating Temperature
0-50℃
Operating RH%
5-95% RH (avoid condensation)
Storage Temperature
-20-50℃
Storage RH%
0-95% RH (avoid condensation)
Power Supply
3 PCS AAA Batteries
Battery Life
300 hours
Weight
±120g
Packing List
Instruction Manual
3 x AAA Batteries
Wrist Strap
Carry Pouch
