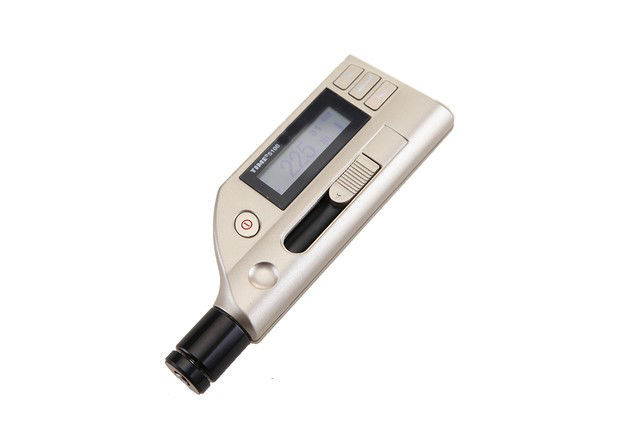

TIME® TH5100 Integrated Portable Digital Hardness Tester

Manufacturer: TIME Group Inc.
SKU: TIM-TH5100
R18 700,00 excl VAT
The TH5100 is an advanced integrated digital hardness tester distinguished by its compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry. The TH5100 combines the universal impact device D and a data processor in a single unit. It automatically computes all Vickers, Brinell, Rockwell, or Shore hardness values. The impact direction can be set so that accurate values can be achieved at any angle, even up-side down! Statistical mean value is automatically provided. When connected to its associated printer, it can perform real time printing or batch printing, and can also be equipped with optional accessories such as support rings to meet the requirements of specialised applications.
+ -

Features

  • Light, mini unit with simple, easy to operate menu
  • Conversion of hardness scales (HL, HV, HB, HRC, HRB and HS)
  • USB interface to connect to PC, assisted by Software Dataview TH51X
  • Measuring Direction: Any direction 360°
  • Automatic identification of impact test direction
  • Memory of 270 average readings in 9 group files
  • Backlight for convenience in darkness
  • Upper and lower limits setting
  • AAA 1.5V battery - capacity shown in display
  • Auto power off

Technical Specification

Part Number

Description

Model

TH5100

Impact device

D integrated

Hardness scales

HLD, HB, HRC, HRB, HV, HS

Accuracy

±6HLD (760 ±30HLD)

Memory

270 average readings in 9 group files

Min. surface roughness of work piece

1.6μm (Ra)

Max. work piece hardness

960HLD

Min. radius of work piece (convex/concave)

Rmin = 50mm (with support ring Rmin = 10mm)

Min. work piece weight

2-5kg on stable support / 0.05-2kg with compact coupling

Min. work piece thickness coupled

5mm

Min. thickness of hardened layers

0.8mm

Indentation depth

Impact devices data

Continuous working time 8h (without backlight)

8h (without backlight)

Power AAA 1.5V batteries

AAA 1.5V batteries

Operating temperature

0-40℃

Dimensions

155×55×25mm

Weight

180g

Weight of Unit in accessories in case

4.365kg

Standard Delivery

  • Main Unit
  • Test block with HLD
  • USB connecting cable
  • Dataview Software
  • Battery AAA 1.5V x 2
  • Support Ring
  • Cleaning brush
  • Carrying case
  • TIME Certificate
  • Warranty Card
  • Manual

Optional Accessories

  • Support Rings
  • Dataview Software
