Hardness Testers

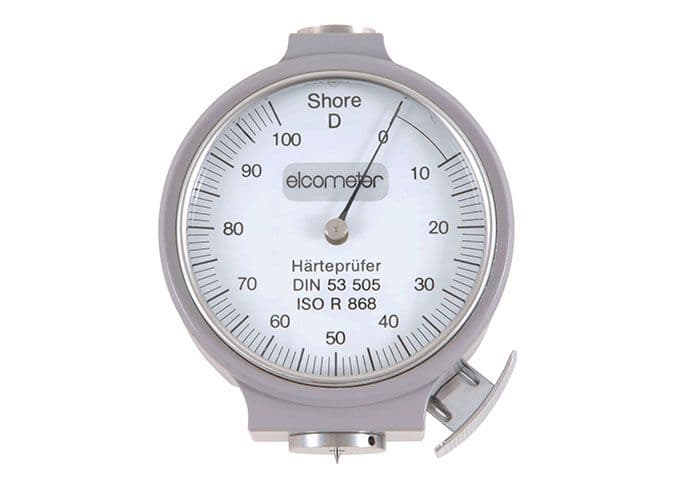

The Elcometer 3120 range of Shore A and Shore D Durometers is widely used to test the hardness of soft materials. A round point indents the material under a fixed force spring and the hardness is displayed on the dial in Shore Hardness Units.The instrument can be used either hand-held or fitted to an optional stand for increased repeatability.

The HT 225A Portable Concrete Test Hammer (HT225A) is designed specifically for the non-destructive testing of concrete structures. This method has considerable advantages over conventional methods of assessing the compressive strength of concrete in that large areas can be tested in a very short time at a very low cost. In addition, it is possible to determine the variation in concrete quality between different sections of a structure. The above standards refer to assessment of the rebound hardness of mortar which is directly related to the compressive strengths of the material being tested.

The SH-A Shore A digital rubber hardness tester is designed for testing the hardness of soft rubber, printer rollers and other elastomer materials (ASTM–D–2240). This easy to use hardness tester with simple structure and small body us lightweight and gives intuitive readings. Taking hand-held measurements and can also be placed in a cradle with a set load test.

Shore digital rubber hardness tester is designed for testing the hardness of soft rubber, printer roller and other elastomer material (ASTM--D--2240). It has advantages of simple structure, convenient use, small body and light weight, intuitive readings. It can carry the hand-held measurements and can also be installed on the same type of fixed cradle which is matched with the set load test.

The TH5100 is an advanced integrated digital hardness tester distinguished by its compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry. The TH5100 combines the universal impact device D and a data processor in a single unit. It automatically computes all Vickers, Brinell, Rockwell, or Shore hardness values. The impact direction can be set so that accurate values can be achieved at any angle, even up-side down! Statistical mean value is automatically provided. When connected to its associated printer, it can perform real time printing or batch printing, and can also be equipped with optional accessories such as support rings to meet the requirements of specialised applications.

The TIME5370 is a smart probe which can test Leeb hardness by connecting to a mobile phone (currently limited to Android). It represents the first step that TIME Group Inc. goes towards the Clould Measurement Technology and Internet. Automatic recording, real-time sharing, convenient service. TIME5370 opens a new era of smart testing. Data sharing anytime, anywhere. Automatically records measurement data. Facilitate the traceability of quality control process. IP54 protection. One-key calling, quick submission of reports, service by your side.
