Shore digital rubber hardness tester is designed for testing the hardness of soft rubber, printer roller and other elastomer material (ASTM--D--2240). It has advantages of simple structure, convenient use, small body and light weight, intuitive readings. It can carry the hand-held measurements and can also be installed on the same type of fixed cradle which is matched with the set load test.
Features
SH-D

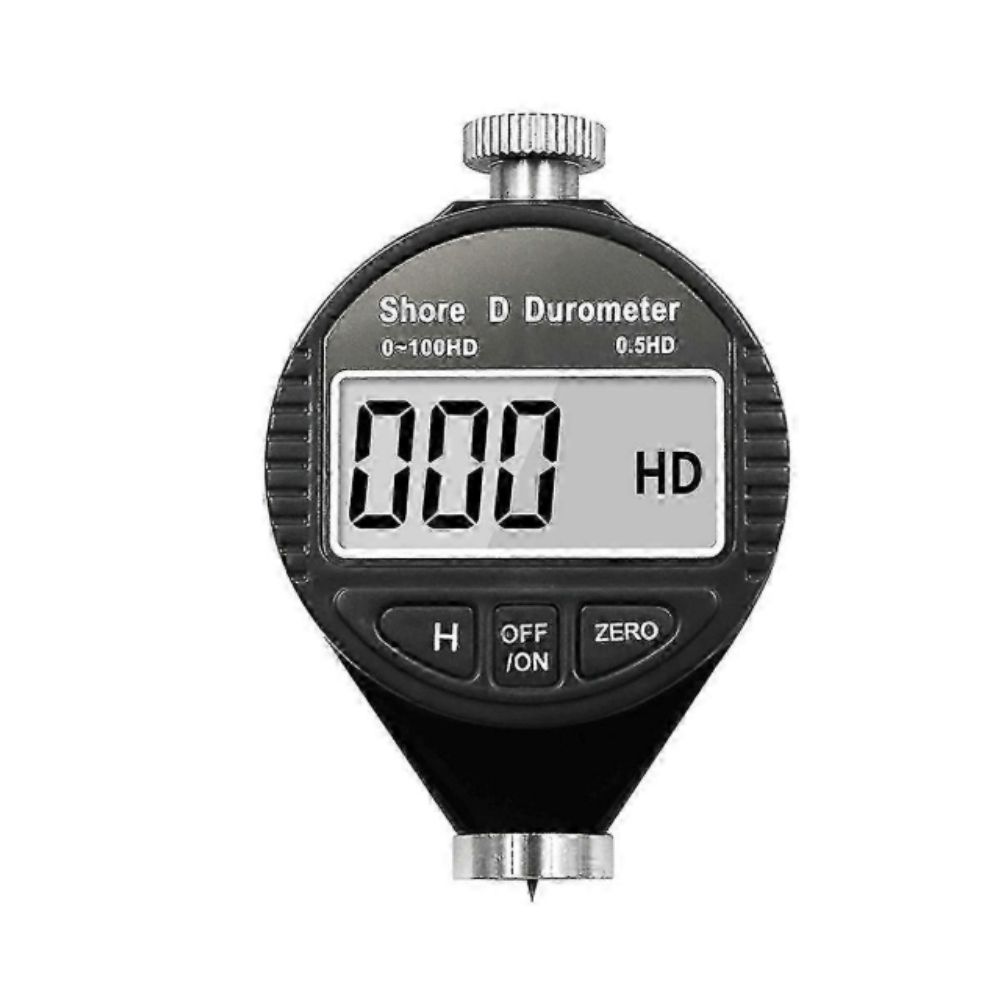

SH-D Shore D Digital Durometer Hardness Tester
Measuring range
0 - 100 HD
Resolution
0.5 HD
Accuracy
±1 HD
Force
0-44.5N
Applications
General hard rubber, hard resin, acryl, glass, thermoplastics, printing plates, fibres, etc.
Indenter shape
Sharp cone point SR 0.1mm 30º included Angle
Net weight
0.5kg
