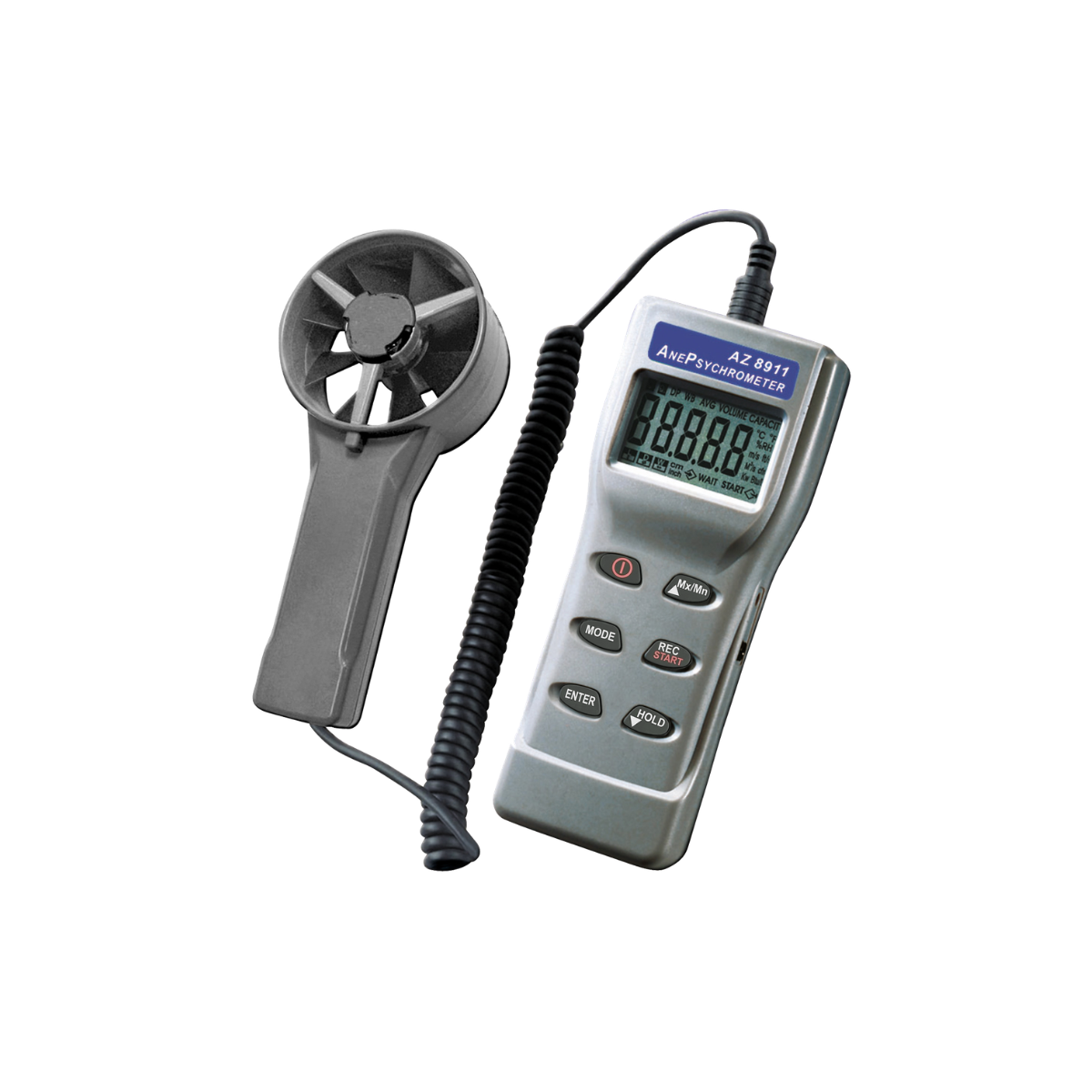

The AZ 8911 Handheld Air Flow + RH% Meter is an excellent all-rounder when it comes to climactic temperature and condition controls. The sensor is attached to the unit by a curly cable, which allows the user to manoeuvre the sensor into tight locations or difficult to reach spots. A protective cap shields the temperature and humidity sensor which can easily be turned on and off to allow the unit to take accurate measurements. Ideal for various HVAC applications and climate
Features
Applications
The AZ 8911 Handheld Air Flow + RH% Meter is well suited to HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) applications and can also be used within the industrial sector for monitoring production environments and storage conditions.
Technical Specification
Model
AZ 8911 Handheld Air Flow + RH% Meter
Wind Speed Range
0.6-32 m/s
Wind Speed Accuracy
±(2% of reading+0.2 m/s)
Air Temperature Range
-20-60℃
Air Temperature Resolution
0.1℃, 0.1℉
Air Temperature Accuracy
±0.6℃
Air RH% Range
0%-100%RH
Air RH% Resolution
0.1%RH
Air RH% Accuracy
±3%RH (at 25℃. 10-90%RH, others ±5%RH)
Temperature Response Time
60 seconds (typical)
Air RH% Response Time
LCD Update
Every second
Wet Bulb Temp. Display
-22-70℃
Dew Point Temp. Display
-68-70℃
Air Volume Display
0-99999 m³/minute
Air Volume Resolution
0.1 (0-9999.9) or 1 (10000-99999)
LCD Size
44 x 26 mm
Operating Temperature
0 - 50℃
Operating RH%
Humidity ＜80%
Storage Temperature
-10 - 50℃
Storage RH%
Humidity ＜90%
Size
Meter: 175 x 70 x 33 mmVane: 170 x 77 x 40 mm
Weight
±170g
Battery
4 x AAA PCS or 9V DC Adaptor
Packing List
Hand-Held Vane & Curly Cable
Instruction Manual
4 x AAA Batteries
Hard Carry Case
Optional Accessories: Replacement Vane Probe / Software Kit
