Elcometer 112 & 3236 Hexagonal Wet Film Combs - Stainless Steel
In stock
Technical detailSpecifications and technical detail for this instrument are on bamr.co.zaAbout Elcometer 112 & 3236 Hexagonal Wet Film Combs - Stainless Steel

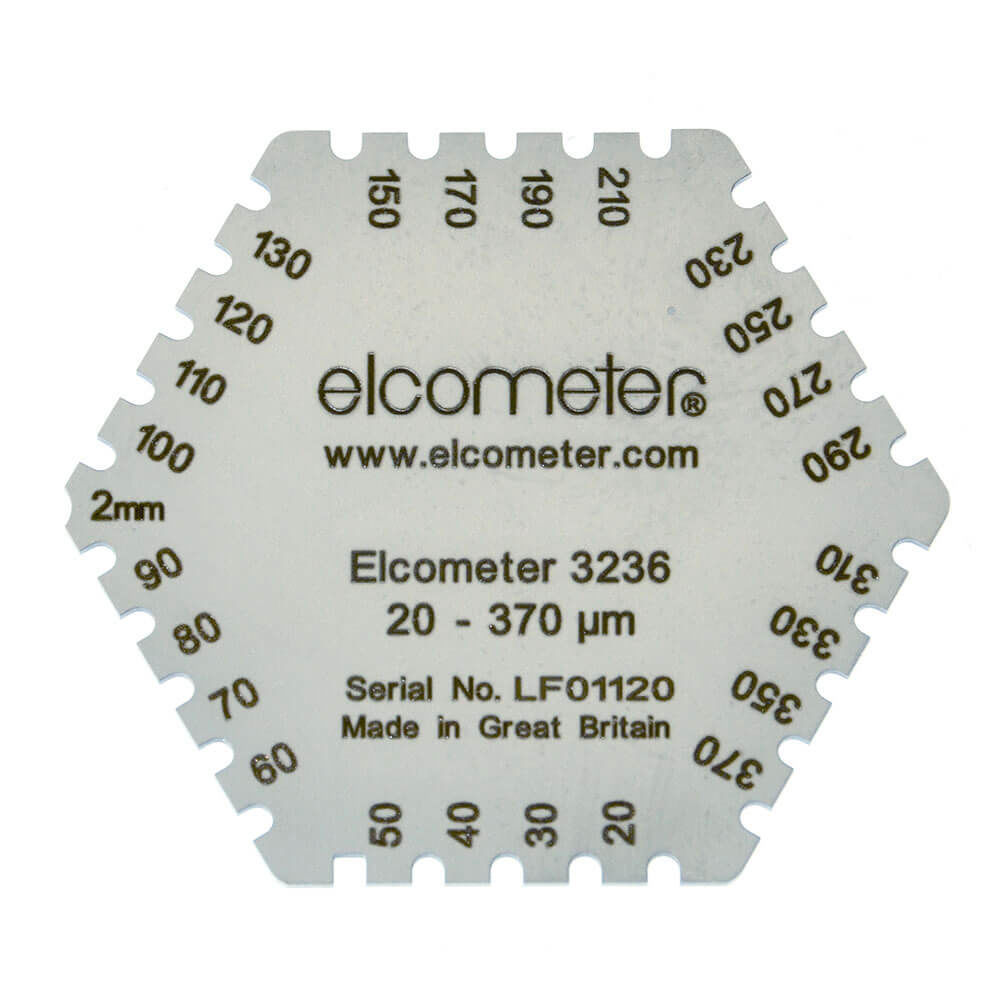

Elcometer 112 & 3236 Hexagonal Wet Film Combs (Stainless Steel)
These hexagonal precision formed stainless steel wet film combs are long lasting, reusable and supplied in a range of thicknesses measuring up to 3000μm.
These six-sided combs vary in size, giving either 24 or 36 measurement steps, depending upon the comb, thus providing increased accuracy.
Technical Specification
| Part Number | Range | Values | Certificate | |
| K0003236M201 | 20 - 370µm | 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 150, 170, 190, 210, 230, 250, 270, 290, 310, 330, 350, 370µm | ο | |
| K0003236M202 | 25 - 2000µm | 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000µm | ο | |
| B112----1B | 25 - 3000µm | 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000µm | ο | |
ο Optional Calibration Certificate available
| B112AL12473-3 | Elcometer 112AL Aluminium Wet Film Comb (Pack of 10) |
|---|---|
| Accuracy | Nominal Values |
| Dimensions | 75 x 65 x 1mm (2.95 x 2.56 x 0.04") |
| Weight | 90g (3.17oz) |
| Packing List | Elcometer 112AL (Pack of 10) and operating instructions |
| Accuracy | ±5% of marked value or 3μm whichever is the greater |
|---|---|
| Elcometer 3236M201/M203 | 53 x 50 x 1mm , 10g |
| Elcometer 3236M202/M204 | 77 x 90 x 1mm, 22g |
| Elcometer 112 | 75 x 65 x 1mm, 20g |
| Packing List | Wet Film Comb, storage case and operating instructions |
