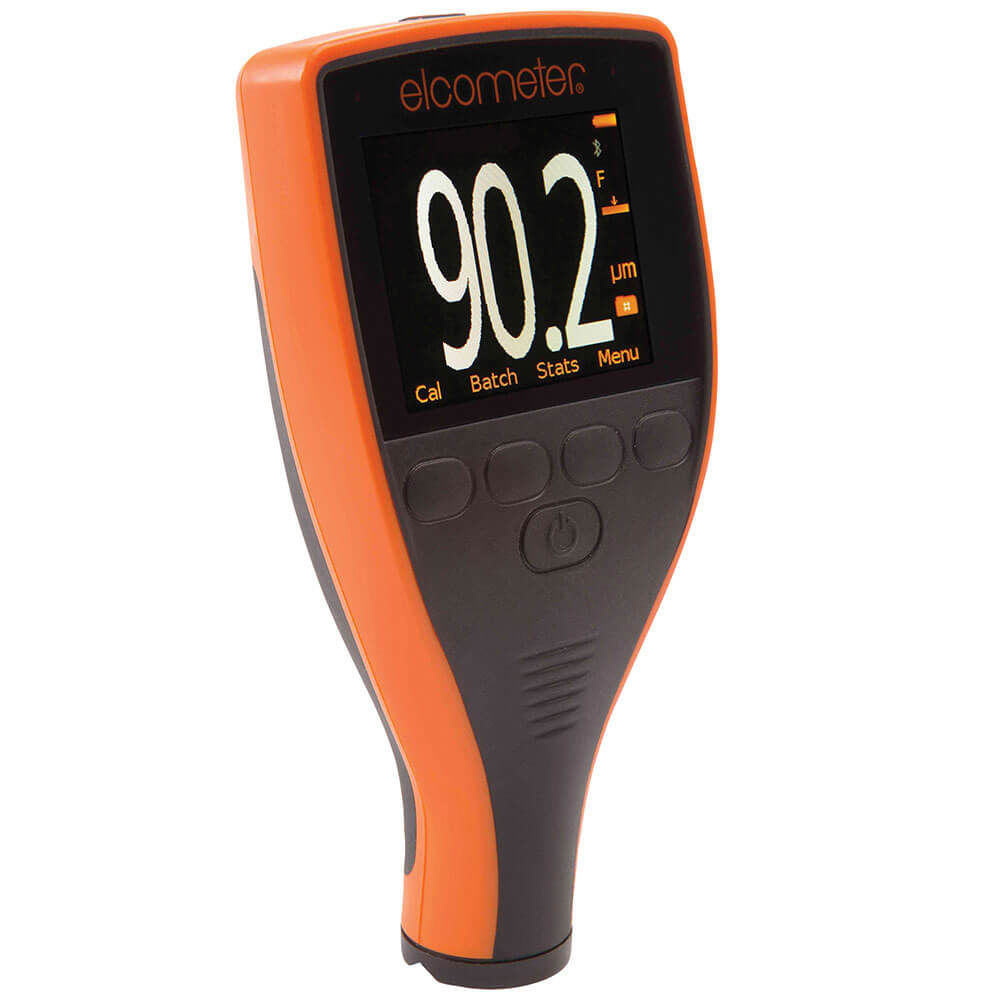

The new Elcometer 456 Coating Thickness Gauge sets new standards making measuring dry film thickness faster, reliable and accurate; helping you to become more efficient. The Elcometer 456 is available in three different models: B, S and T. Each gauge provides the user with increasing functionality – from the basic Elcometer 456 Model B, to the top of the range Elcometer 456 Model T, with memory, alpha-numeric batching and Bluetooth® communication.
Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during measurement – allowing for consistent, repeatable and accurate results.
View the Probe Option Tab at the top for the various Separate Coating Thickness Gauge Probe Options
Key Features:
Easy
- Large buttons ideal for gloved hands
- Easy to use menus in multiple languages
- High contrast colour LCD with auto rotate
- High and low reading limit indicators
- Factory calibrated for immediate use
Accurate
- Measurement Capability to ±1%
- Conforms to national & international standards
- Temperature stable measurements
- Increased reading resolution for thin coatings
- Measures accurately on smooth, rough, thin and curved surfaces
Reliable
- Repeatable and reproducible
- 2 year gauge warranty
- Supplied with fully traceable test certificates
- Batch date and time stamp facility
Rugged
- Sealed, heavy duty and impact resistant
- Dust and waterproof equivalent to IP64
- Scratch and solvent resistant display
- Durable gauge and probe construction
- Suitable for use in harsh environments
Efficient
- Fast reading rate of 70+ per minute
- Multiple calibration memories
- Alpha numeric batch identification
- User selectable calibration methods
- Compatible with all Elcometer software including ElcoMaster 2.0
Powerful
- Wide range of interchangeable probes
- USB and Bluetooth™ data output
- Stores up to 75,000 readings in 999 batches
- Measures up to 30mm of coating on metal substrates
The new ElcoMaster® is a fast, easy to use software solution for all your reporting requirements.
For more information on the Elcometer 456, visit www.elcometer456.com

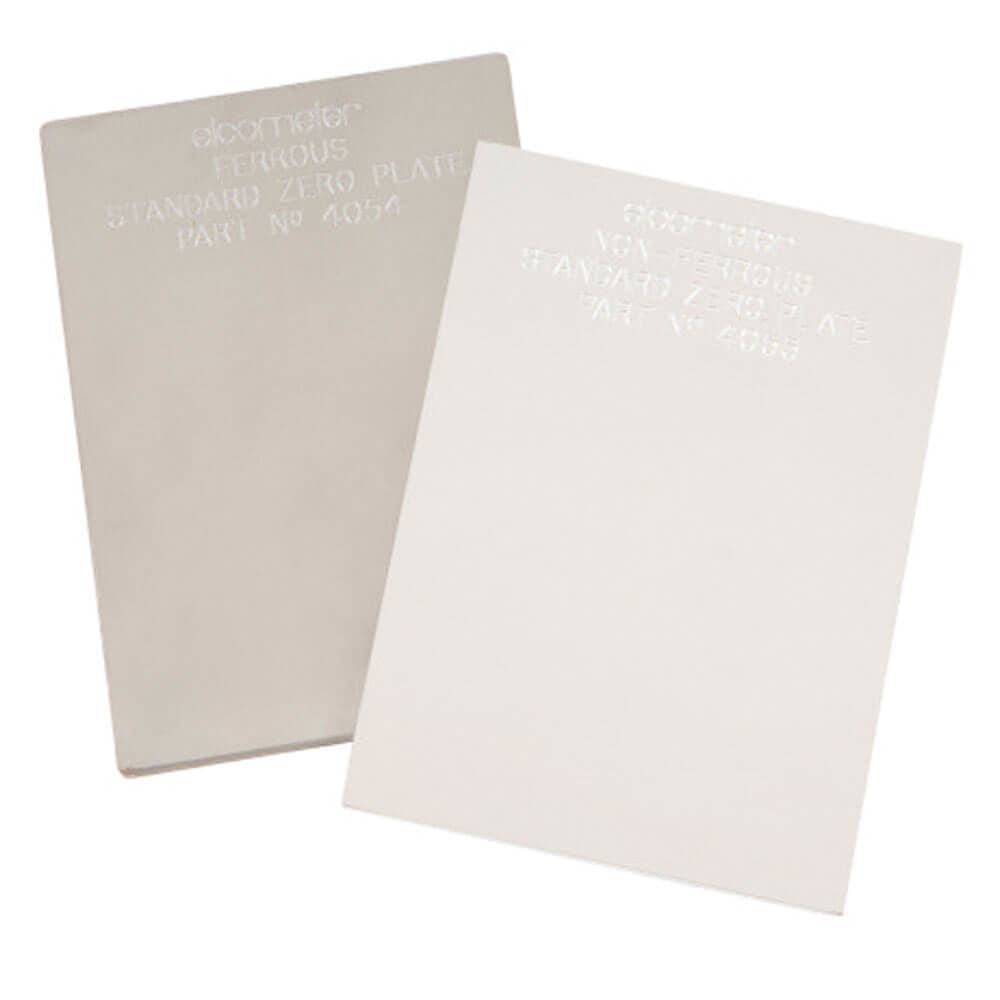

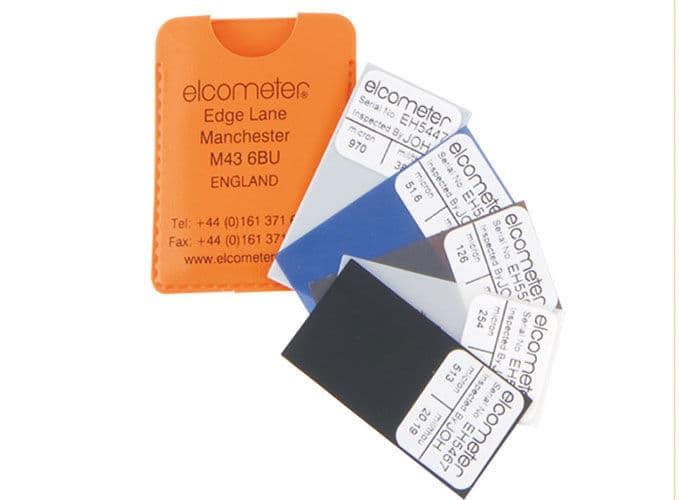

Formal quality systems, such as those described in ISO 9000, require that gauges be properly controlled, logged and in calibration. Increasingly, users are specifying that the readings taken by gauges are traceable to National Standards. A comprehensive range of certified foils together with zero test plates is available to ensure the accuracy of the gauges, click here
The Elcometer 456 can be used in accordance with:
- ISO1461
- ISO19840
- ISO2063
- ISO2360
- ISO2808-6A
- ISO2808-6B
- ISO2808-7C
- ISO2808-12
- AS2331.1.4
- AS 3894.3-B
- AS/NZS 1580.108.1
- ASTM B 499
- ASTM D 1186-B
- ASTM D 1400
- ASTM D 7091
- ASTM E 376
- ASTM G 12
- BS3900-C5-6B
- BS3900-C5-6A
- BS5411-11
- BS5411-3
- BS5599
- DIN50981
- DIN50984
- ECCAT1
- EN13523-1
- IMO MSC.215(82)
- IMO MSC.244 (83)
- NF T30-124
- SS184159
- SSPC PA2
- US Navy PPI 63101-000
- US Navy NSI 009-32
Standards not in bold have been superseded but are still recognised in some industries.
An introduction and the calibration of the Elcometer 456 can be viewed at the Video Tab above.
