Elcometer

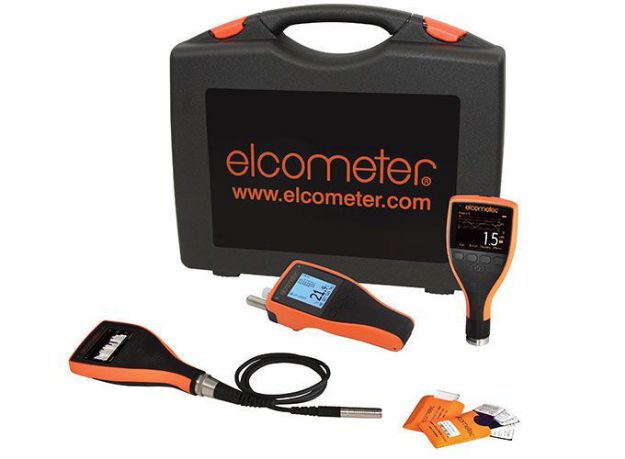

Elcometer Digital Inspection Kit - Top

Part numberELC-YKIT-DIGITAL-T
R65,700.00excl vat

In stock

BAMRTechnical detailSpecifications and technical detail for this instrument are on bamr.co.za

About Elcometer Digital Inspection Kit - Top

Available as a Basic or Top version, these Digital Inspection Kits have been specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness.

Filed under
Share

These digital inspection kits have been specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness. Ideal for ‘paperless’ quality assurance systems the kits come complete with ElcoMaster® Data Management Software for professional reporting and analysis. Two inspection kits are available (Basic & Top) to meet your specific needs.

Measurement parameters include:
• Surface profile
• Climatic conditions
• Coating thickness

Ferrous Digital Inspection Kit; Top Version

Contains higher specification instruments with greater functionality for more advanced inspection processes and measurements.

Kits Contents:

Elcometer 224 Model T Integral Digital Surface Profile Gauge, 0 – 500μm (0 – 20mils)
Elcometer 319 Top Dewpoint Meter with Magnetic Surface Probe
Elcometer 456 Model T Ferrous Separate Coating Thickness Gauge with standard separate probe; 0- 1500μm (0 – 60mils)
ElcoMaster® Data Management Software & USB Cable

Gauges have memory which can store up to 150,000b readings and Bluetooth® technology for cable free data transfer and are compatible with ElcoMaster® Software, ideal for creating detailed, professional reports.

Kit Content / Part Number YKIT- YKIT- YKIT- YKIT-
DIGITAL-B DIGITAL-T DIGITALFNF-B DIGITALFNF-T
Elcometer 224 Integral Digital Surface Profile Gauge ■ ■ ■ ■
Scale Range: 0 - 500μm
Complete with: (Model B) (Model T) (Model B) (Model T)
Calibration Test Foils - Nominal Values:
125 & 500μm
Glass Zero Tile
AA Batteries (x2)
Probe Tip Protection Cap
Wrist Strap
Test Certificate
Elcometer 319 Digital Dewpoint Meter ■ ■ ■ ■
Complete with: (Standard) (Top) (Standard) (Top)
AA Batteries (x2)
Wrist Strap
Test Certificate
Elcometer 319 Magnetic Surface Probe □ ■ □ ■
Elcometer 456 Ferrous/FNF Separate Digital ■ ■ ■ ■
Coating Thickness Gauge (Ferrous (Ferrous (FNF (FNF
Complete with: Model B) Model T) Model B) Model T)
AA Batteries (x2)
Wrist Strap
Test Certificate
Elcometer 456 Ferrous/FNF Standard Separate Probe ■ ■ ■ ■
Scale Range: 0 - 1500μm Ferrous Ferrous FNF FNF
Complete with Scale 1 Foil Set:
25, 50, 125, 250, 500 & 1000μm
Test Certificate
Elcometer 456 Ferrous/FNF PINIP™ Probe □ □ □ □
Scale Range: 0 - 1500μm Ferrous Ferrous FNF FNF
Complete with Scale 1 Foil Set:
25, 50, 125, 250, 500 & 1000μm
Test Certificate
ElcoMaster® Software CD and USB Cable □ ■ □ ■
