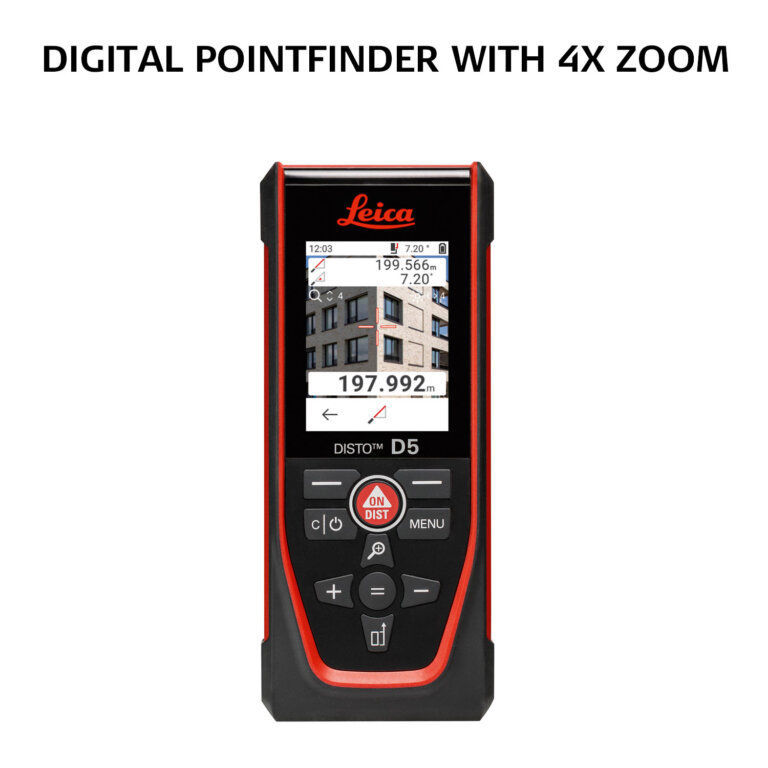

Leica Disto D5 Laser Distance Meter

Manufacturer: Leica
SKU: LEI-D5
R11 300,00 excl VAT
The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology.
+ -

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology.

For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements.

This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.

Technical Specifications

Accuracy with favourable conditions *1.0 mm  ***
Accuracy with unfavourable conditions **2.0 mm ***
Range with favourable conditions *0.05 – 200 m  ***
Range with unfavourable conditions **0.05 – 120 m  ***
Accuracy and Range according to ISO 16331-1Yes
Smallest unit displayed0.1 mm
X-Range Power TechnologyYes
LaserClass 2, 635 nm,
Digital Pointfinder with 4-fold zoomYes
Tilt measuring range ****360°
Tilt measuring tolerance± 0.2°
ø laser point | at distances6 / 30 / 60 mm | 10 / 50 / 100 m
Protection classIP54 (dust- and splash water protected)
Auto. laser switch off after90 s
Auto. power switch off after180 s
Bluetooth® SmartBluetooth v5.0
Range of Bluetooth Smartup to 10 m
Battery durability (Li-Ion 2 000 mAh)up to 5’000 measurements, up to 10 hours operation time
Dimension (L x W x H)144 x 60 x 24 mm
Weight180 g
Temperature range storage | operation-25 to 70°C | -10 to 50°C

Packing List

  • Leica DISTO D5

  • Pouch

  • USB-C to USB-A Cable

  • Hand Loop

  • Quick Start Guide

  • Warranty Card

  • Safety Manual

  • Calibration Certificate Silver
