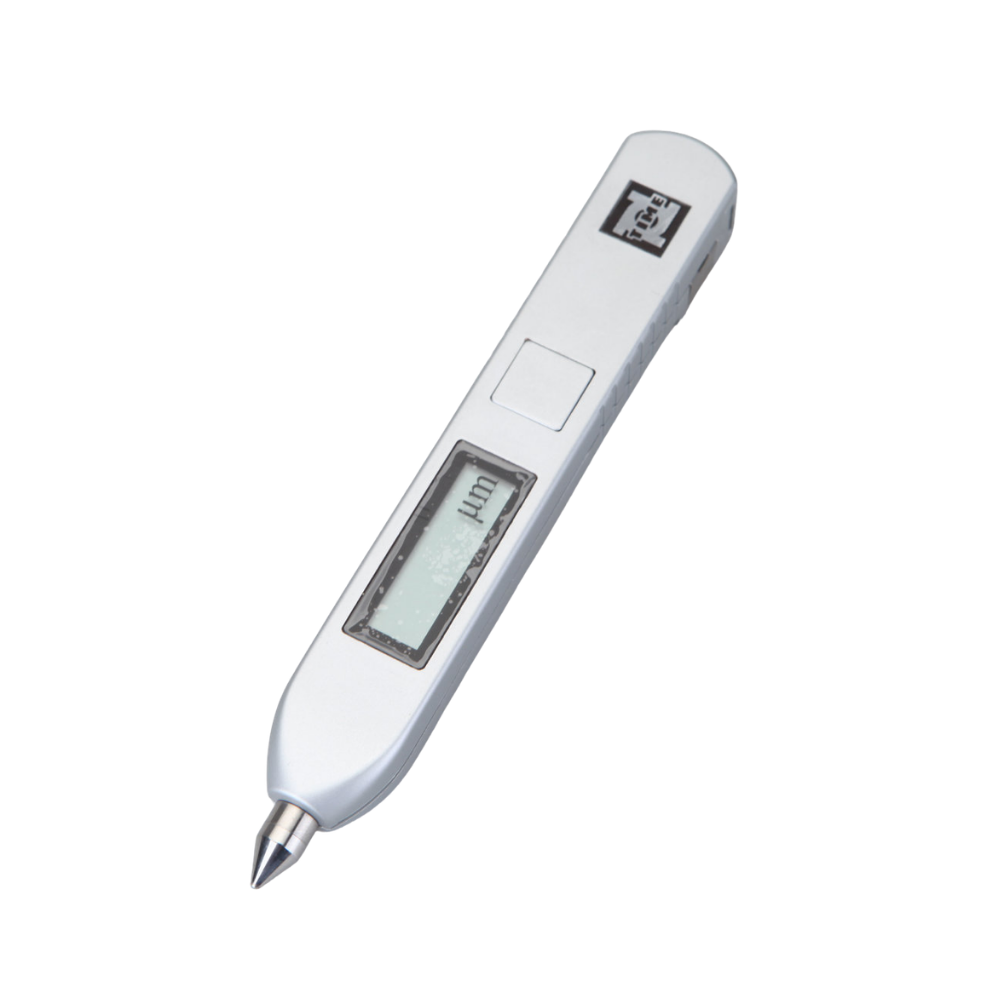

The TIME® TV7120 and TV7126 Portable Pen Type Vibration Testers are ideal for prompt testing of vibration on workshop machines, as well as for quick checking of unbalanced and misaligned of bearings and gears. It guards against mechanical malfunction. The tested value is held for 40 seconds after which the unit will automatically switch off.
Features
Technical Specifications
Model
TV7120
TV7126
Parameter
RMS of Vibration Velocity (mm/s)
Velocity, Acceleration, Displacement
Testing Range
Velocity
0.01mm/s – 199.9mm/s (RMS)
Acceleration
0.01mm/s – 199.9mm/s (peak)
Displacement:
0.001mm – 199.9mm (peak-peak)
Frequency Range
10Hz – 1kHz
Displacement
10Hz – 500Hz
Accuracy
±5% ±2
Display
3½ Digits LCD refresh Interval about 0.5 second
Power supply
2 x Button Batteries (LR44 or SR44)
Battery Capacity
Approx. 5 hours working continuously
Operating temperature
0-40 ˚C
Environment Relative Humidity
<85%
Dimensions
150mm x 22mm x 18mm
Weight
55g (include 2 batteries)
Packing List
TIME TV7120 / TV7126 Portable Pen Type Vibration Tester
Protection Pocket
Calibration Certificate
Warranty Card
Instruction Manual
