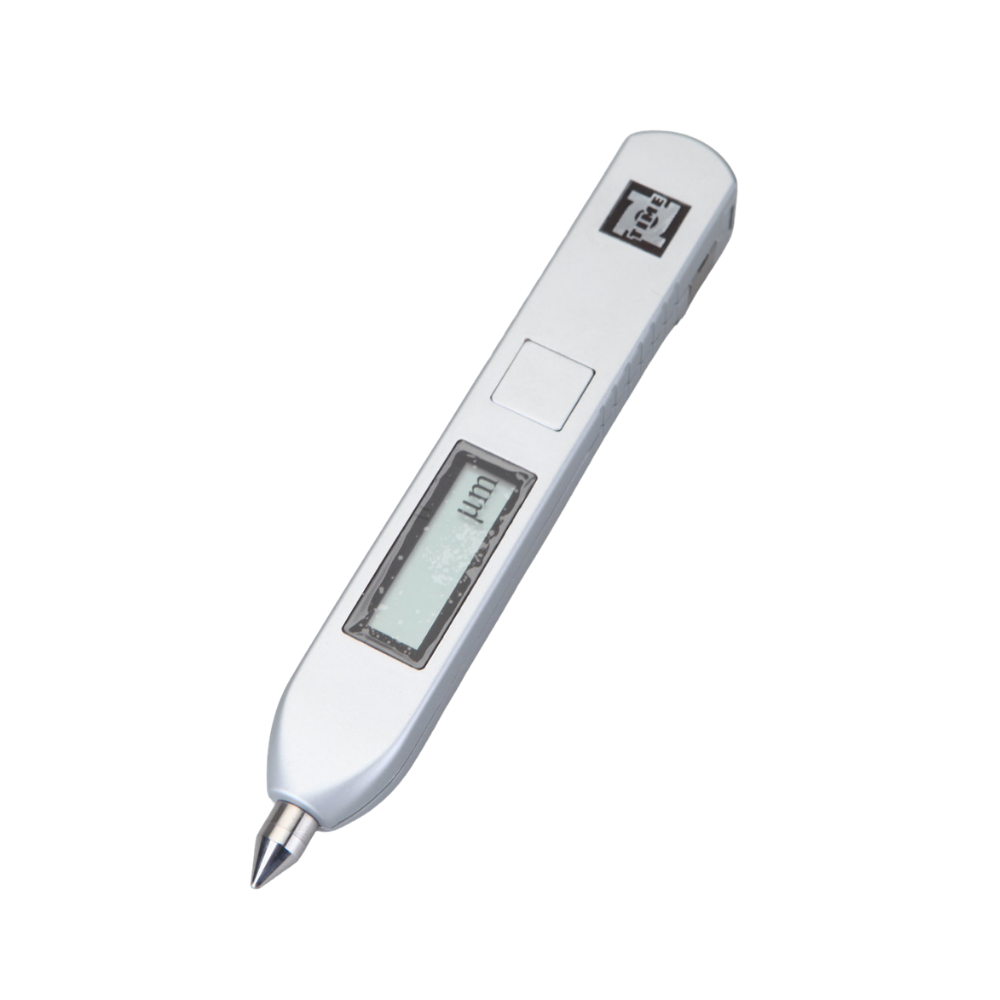

TIME TV7126 Portable Pen Type Vibration Tester
In stock
Technical detailSpecifications and technical detail for this instrument are on bamr.co.zaAbout TIME TV7126 Portable Pen Type Vibration Tester
The TIME® TV7120 and TV7126 Portable Pen Type Vibration Testers are ideal for prompt testing of vibration on workshop machines, as well as for quick checking of unbalanced and misaligned of bearings and gears. It guards against mechanical malfunction. The tested value is held for 40 seconds after which the unit will automatically switch off.
The TIME® TV7120 and TV7126 Portable Pen Type Vibration Testers are ideal for prompt testing of vibration on workshop machines, as well as for quick checking of unbalanced and misaligned of bearings and gears. It guards against mechanical malfunction. The tested value is held for 40 seconds after which the unit will automatically switch off.
Features
- Prompt testing of vibration on workshop machines.
- Quick check of balance and alignment on bearings and gears
- Guard against mechanical malfunction
- Tested value holds for 40 seconds
- Automatic switch off after 40 seconds
Packing List
TIME TV7120 / TV7126 Portable Pen Type Vibration Tester |
Protection Pocket |
2 x Button Batteries (LR44 or SR44) |
Calibration Certificate |
Warranty Card |
Instruction Manual |
| TV7120 | TV7126 |
|---|---|
| RMS of Vibration Velocity (mm/s) | Velocity, Acceleration, Displacement |
Testing Range
| Acceleration | 0.01mm/s – 199.9mm/s (peak) |
|---|---|
| Displacement: | 0.001mm – 199.9mm (peak-peak) |
Frequency Range
| Displacement | 10Hz – 500Hz |
|---|---|
| Display | 3½ Digits LCD refresh Interval about 0.5 second |
| Power supply | 2 x Button Batteries (LR44 or SR44) |
| Battery Capacity | Approx. 5 hours working continuously |
| Operating temperature | 0-40 ˚C |
| Environment Relative Humidity | <85% |
| Dimensions | 150mm x 22mm x 18mm |
| Weight | 55g (include 2 batteries) |
