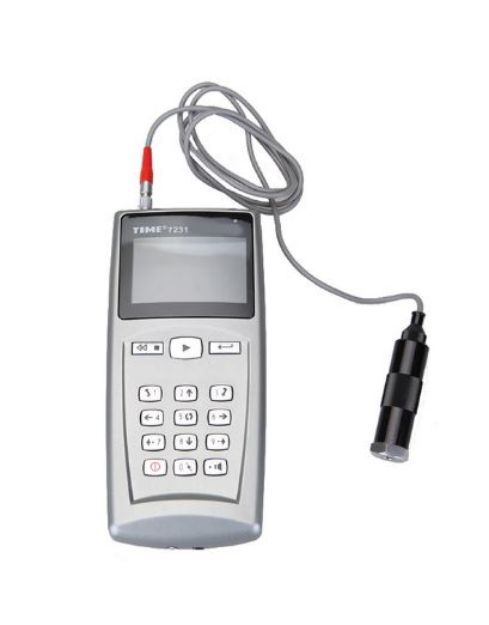

TIME TV7231 Portable Vibration Tester

The TIME TV7231 Portable Vibration Tester with full graphic LCD and Spectrum Analysis has a large measuring range with a displacement up to 18.1. It analyses acceleration, velocity, displacement, rotation speed and frequency.

Features

• TV7231 is equipped with low sensitivity probe, suitable for testing strong vibration signal.
• Two display modes: digital value mode and spectrum mode
• Large memory function:100×100 measured results (100 testing points, 100 data can be stored in each testing points); 100 Spectral charts
• Spectrum chart can display in real time
• Easy diagnosis: alarm is sounded when vibration go over limit set, and get into spectrum mode
• Testing results and spectrum chart can be printed out when connected to printer
• 300×200 matrix LCD display, with backlight
• RS-232 output for a PC (optional software)

Test Method

• Common mode displays any one of peak acceleration, velocity in RMS and displacement in peak-to-peak
• Special mode displays all the above options simultaneously.
• Spectrum mode display, spectrogram with status bar on display with warning and alarm limit as well as memory for 100 x 100 readings and 100 spectrograms and RS-232 output for a PC (optional software).

Technical Specifications

Packing List
