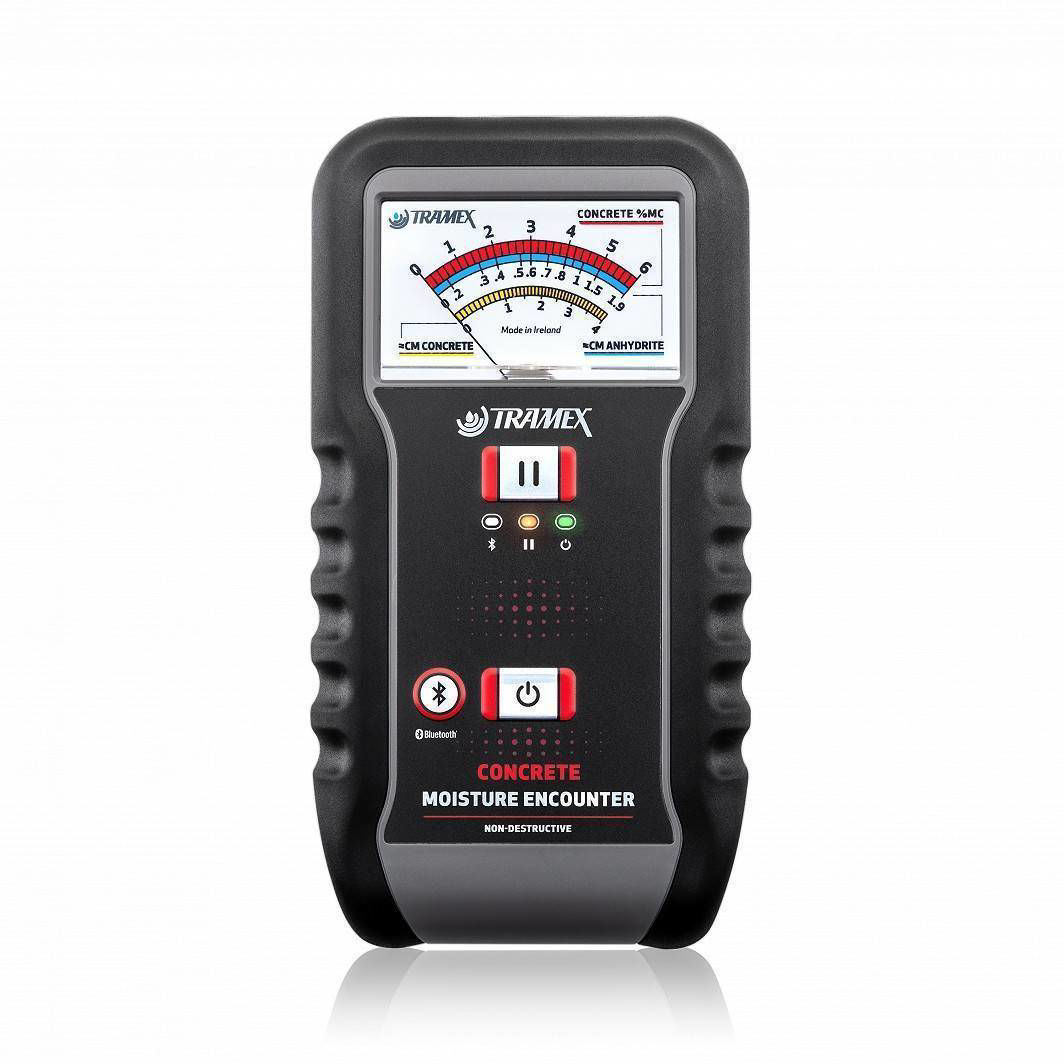

Tramex CME5 Concrete Moisture Encounter 5

SKU: TRA-CME5
R10 600,00 excl VAT
The Tramex Concrete Moisture Encounter 5 (CME5) is a non-destructive analog moisture meter for concrete floors and slabs providing instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The CME5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659.
+ -

The Concrete Moisture Encounter detects and evaluates the moisture conditions within the slab or screed by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material.

The Concrete Moisture Encounter determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear analog dial.

Features

  • Non-destructive in operation with no need to probe, drill or mechanically damage the surface.
  • Clear easy-to-read analogue dial.
  • Instant and precise readings to a depth of approximately 20mm into the slab.
  • Bluetooth connection to accompanying IOS & Android App allowing for continual development and integration of apps and reporting.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible, and for easy recording of data.
  • Reproducible and reliable results.
  • CM Carbide Method moisture content equivalent readings.
  • Spring-loaded contact pins compensate for uneven concrete and boost signal penetration.
  • Rugged ergonomically designed enclosure.

Technical Specifications

CME5

Tramex CME5 Concrete Moisture Encounter

Measuring range

Moisture Content for Concrete:

0 to 6%

Carbide Method moisture content equivalent for Concrete:

0 to 4

Carbide Method moisture content equivalent for Anhydrite:

0 to 1.9

Display

Analogue

Depth of penetration

20 mm approx

Construction

ABS Body

Power

2 x AALR6 ALKALINE (included)

Size

160mm x 85mm x 38mm

Weight

344g



Packing List



Tramex CME5 Concrete Moisture Encounter 5

Hard Carry Case

Batteries

Wrist Strap

Instruction Manual
