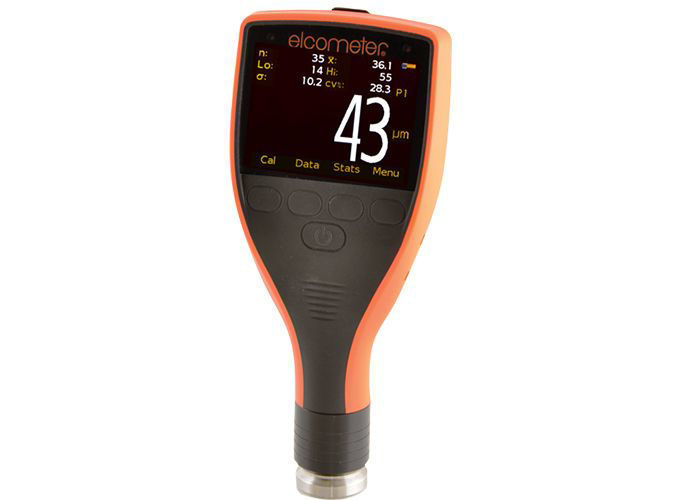

The Elcometer 224 Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces. Fast, accurate and very user friendly, the Elcometer 224 is available with or without memory and Bluetooth®.
The Elcometer 224 meter is available in two different models: Model B and Model T. Each surface profile gauge provides the user with increasing functionality from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth® communication.
Standard and armoured probes are available for the separate models, providing even greater measurement flexibility. Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm & 508µm and an Elcometer Test Certificate).
Features Elcometer 224 Digital Surface Profile Gauge
- Accurate, immediate and repeatable results
- Integral & separate probe variants for flat and convex* surfaces
- The separate probes can now measure on pipes and tanks
- Tough tungsten carbide user replaceable tip, can be used for up to 20,000 readings
- Stores up to 150,000 readings in alpha numeric batches (Model T only)
- Auto rotating display with tap awake feature
- Cost per test is significantly lower than other test methods
- Large backlit screen makes viewing readings easy
- Digital display prevents reading interpretation errors
- Intuitive menus in multiple languages enables use straight from the box
- Dust and water resistant rugged design equivalent to IP64
- Ergonomic design for comfort during continuous use
- 2.4” Colour screen provides enhanced reading visibility at all angles
- Fast reading rate at 60+ readings per minute
- Review batch data or last 20 readings in a graph format
- Counted average mode stores the average value of a preset number of readings (Model T only)
- USB and Bluetooth® data output to ElcoMaster® (Model T only)
| User Friendly - Large buttons ideal for gloved hands
- Easy to use menus in multiple languages
- High contrast colour LCD with auto rotate
- High and low reading limit indicators
- Factory calibrated for immediate use
Accurate
- Measurement capability to ±5%
- Conforms to National & International Standards
- Temperature stable measurements
- Statistics are calculated & displayed in real time.
- Live and batch readings graph format for instant analysis
Reliability
- Repeatable and reproducible
- 2 year gauge warranty
- Supplied with fully traceable Test Certificates
- Batch & individual reading date and time stamp facility
Tough
- Sealed, heavy duty and impact resistant
- Dust and waterproof equivalent to IP64
- Scratch and solvent resistant display
- Durable gauge and probe construction
- Suitable for use in harsh environments
Efficient
- Fast reading rate of 60+ per minute
- Integral and separate probe options to suit your application on flat or curved surfaces*
- Alpha numeric batch identification
- Compatible with ElcoMaster / ElcoMaster Mobile
- Powersave mode with tap awake
Powerful
- Tough tungsten carbide user replaceable tip can be used for up to 20,000 readings
- USB and Bluetooth® data output
- Stores up to 150,000 readings in 2,500 batches
- Measures profiles up to 500μm
|
The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile gauge provides the user with increasing functionality – from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth® communication.
Standard and armoured probes are available for the separate models, providing even greater measurement flexibility. Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm & 500µm) and an Elcometer Test Certificate.
3 Measurement Modes
Whichever test method or Standard you are working to the Elcometer 224 Digital Surface Profile Gauge has a range of easy to use Measurement Modes.
 |  |  |
Custom Mode In Custom mode, simply select to take either 5 or 10 readings per measurement then specify either the average, highest or lowest measurement of each set of readings to be displayed and saved into the batch memory2. | Standards Mode Select the International Standard you are working to and the Elcometer 224 will automatically set the data collection method accordingly. When selecting ASTM D 4417, you can even choose if the gauge stores the average or highest reading as the measurement. | Immediate Mode Take individual peak-to-valley measurements and save into the batch memory2. The Elcometer 224 automatically calculates and displays key statistics whilst you’re inspecting, and you can set limits so the gauge will alarm whenever the reading is outside a predefined acceptable range. |
How to measure surface profile
 | 1. Ensure probe is 90° to substrate to ensure accurate readings and calibrate the gauge on a glass zero tile. 2. To take one spot measurement, take either 5 or 10 readings within a 100mm diameter area. 3. The measurement displayed is either the average peak-to-valley height or the maximum reading of the 5 or 10 readings, depending on which measurement mode you have selected. 4. To establish the average surface profile of an area, record 5 spot measurements for each 1m x 1m area. |
Wireless Connectivity
 | Instantly transfer readings, statistics, and limits; via USB or Bluetooth®; to your PC or mobile device, using ElcoMaster® or your own software application, creating professional inspection reports in minutes. Fast, accurate and very user friendly, the Elcometer 224 Surface Profile Gauge is available with or without memory and Bluetooth®. |
The Elcometer 224 Digital Surface Profile Gauges can work in accordance with:
- ASTM D 4417-B
- SANS 5772
- SSPC PA 17
- US Navy NSI 009-32
- US Navy PPI 63101-000
