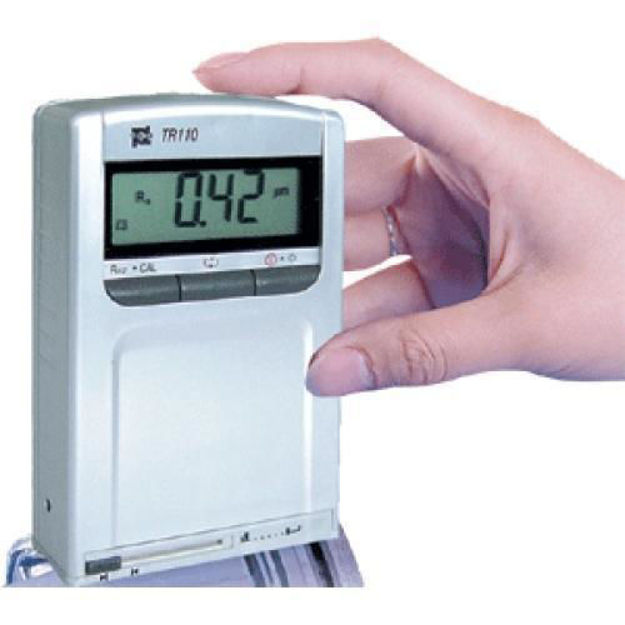

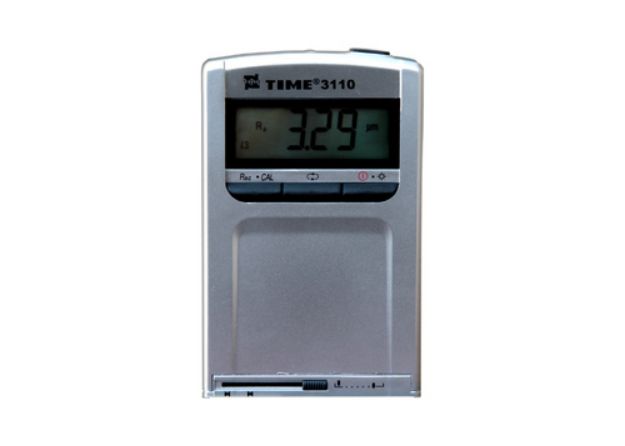

TIME® TR3110 Portable Roughness Tester

Manufacturer: TIME Group Inc.
SKU: TIM-TR3110
R22 300,00 excl VAT
The TR3110 Portable Roughness Tester is the latest instrument combining electronics and probe in an Integral Unit. It is widely used to test various metal and non-metal processing surfaces. It determines both roughness parameters Ra and Rz within a wide measuring range. The piezo-electric pich-up stylus with diamond tip assures a very reliable measurement within tolerances conforming with ISO class 3. Roughness parameter Ra conforms to ISO and Rz conform to ISO and DIN
+ -

Features

  • More advanced model of the very popular TR100
  • Large LCD with Backlight
  • Protective slide for pick-up
  • Pocket-sized & economically priced
  • Large measuring range suitable for most materials
  • Both Ra and Rz parameters in one instrument
  • Features external calibration at keyboard
  • Standard conform ISO and DIN
  • Rechargeable Li-ion batteries, work while charging

TR3110 Portable Roughness Tester - Specifications

DescriptionSpecification
Parameters :Ra (ISO), Rz (DIN)
Measuring range :Ra : 0.05-10.0 mic
Rz : 0.1-50 mic
Cut-off length :0.25 mm, 0.8 mm, 2.5 mm
Evaluation length :1.25 mm, 4.0 mm, 5.0 mm
Tracing length :6 mm
Tracing Speed :1.0 mm/sec
Accuracy :±15%
Repeatability :<12%
Filter :RC Analogue
Pick-up :Piezoelectric
Stylus tip :Diamond, radius 10.0 ±2.5 mic
Angle : 90 (+5º or -10º)
Power supply :3.6V / 2 x Li-ion – batteries
Charge :9V DC, 3 hours (recharging time)
Operating Temperature :0 - 40ºC
Relative Humidity :<80%
Storage Temperature :-25 to 60ºC
Vertilation :Grade 3
Dimensions :1110 x 70 x 24 mm
Weight :200 g

Packing List

  • Processor integrated with pick-up
  • Roughness standard test plate Ra
  • Battery charger
  • Carrying case
  • Certificate
  • Manual
  • Guarantee card
