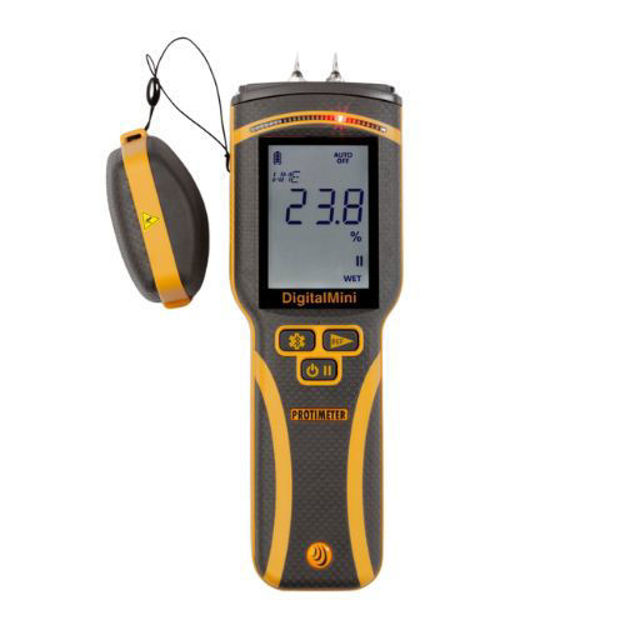

Protimeter Digital Mini® Moisture Meter BLD5702

Manufacturer: Protimeter
SKU: PRO-BLD5702
R5 100,00 excl VAT
Tough, accurate, easy-to-use. Introducing our portable and precise pin type moisture meter featuring both color LED indication and a large digital display. For use in Wood, Drywall & Building Materials.
+ -

The Digital Mini allows building professionals—such as flood damage restoration contractors, surveyors, homebuilders and architects—to assess building moisture levels during new build and refurbishing activities.Excessive moisture in  buildings can lead to decay and deterioration of components and decorative finishes. Professionals involved with the identification, management and remedy of moisture need tools that help them to:

  • Easily identify the extent of the moisture penetration,
  • diagnose the cause of the problem and
  • monitor changes in moisture level.

Plus, the ability to add optional attachments and a patent pending reference mode enables you to compare your reading with a baseline measurement.

This reliable moisture meter has a pin type measurement function and shows results on the large digital display as well as the easy to interpret colour LED display. The instrument has an auxiliary port for optional moisture probes.

Features

  • Rugged construction
  • Large backlit display
  • Pin moisture measurement
  • Wide range of accessory plugins
  • Industry leading 2-year warranty

Benefits

  • Easy-to-use
  • Allows rapid assessment of building moisture
  • Instant readings in a wide range of building materials

The Digital Mini uses the same attachment as the rest of the Protimeter range, including the Hammer Electrode including:

  • Building survey
  • Fire and flood restoration
  • Concrete surface measurement
  • Indoor air quality
  • Environmental health

Wooden sub-floor and hardwood flooring

Technical Specifications

Part Number

Description

BLD5702

Protimeter Digital Mini Moisture Meter

Range

7.9% to 99% WME (Pin Measurement)

Dry (green)

7-16.9

At Risk (yellow)

17-19.9

Wet (red)

20-99.9

Display

Display 1

Digital LCD backlit

Display 2

60 LEDs green (dry), yellow (at risk) and red (wet)

Depth of moisture

Pin

Up to 12.5 mm

Case

Pouch with belt loop

Power

9 V battery (supplied)

Warranty

2 years on mechanical or manufacturing defects does not include wearing part or

Weight

225g (including Batteries)

Dimensions

190 mm x 70 mm x 49 mm

Battery

1 x 9 V 6F22R

User adjustable features

Auto shut off 1-6 mins

Hold feature

Backlight on/off

Audible on/off

Dry, At Risk and Wet Indicator on/off

Packing List

Protimeter BLD 5702 Digital Mini Moisture Meter

Auxiliary 2-Pin Moisture Probe (BLD5079-2T)

Pouch with Belt Loop

User Instructions

Wood Species Calibration Table Leaflet

Calibration Check Device

Two Spare Pins
