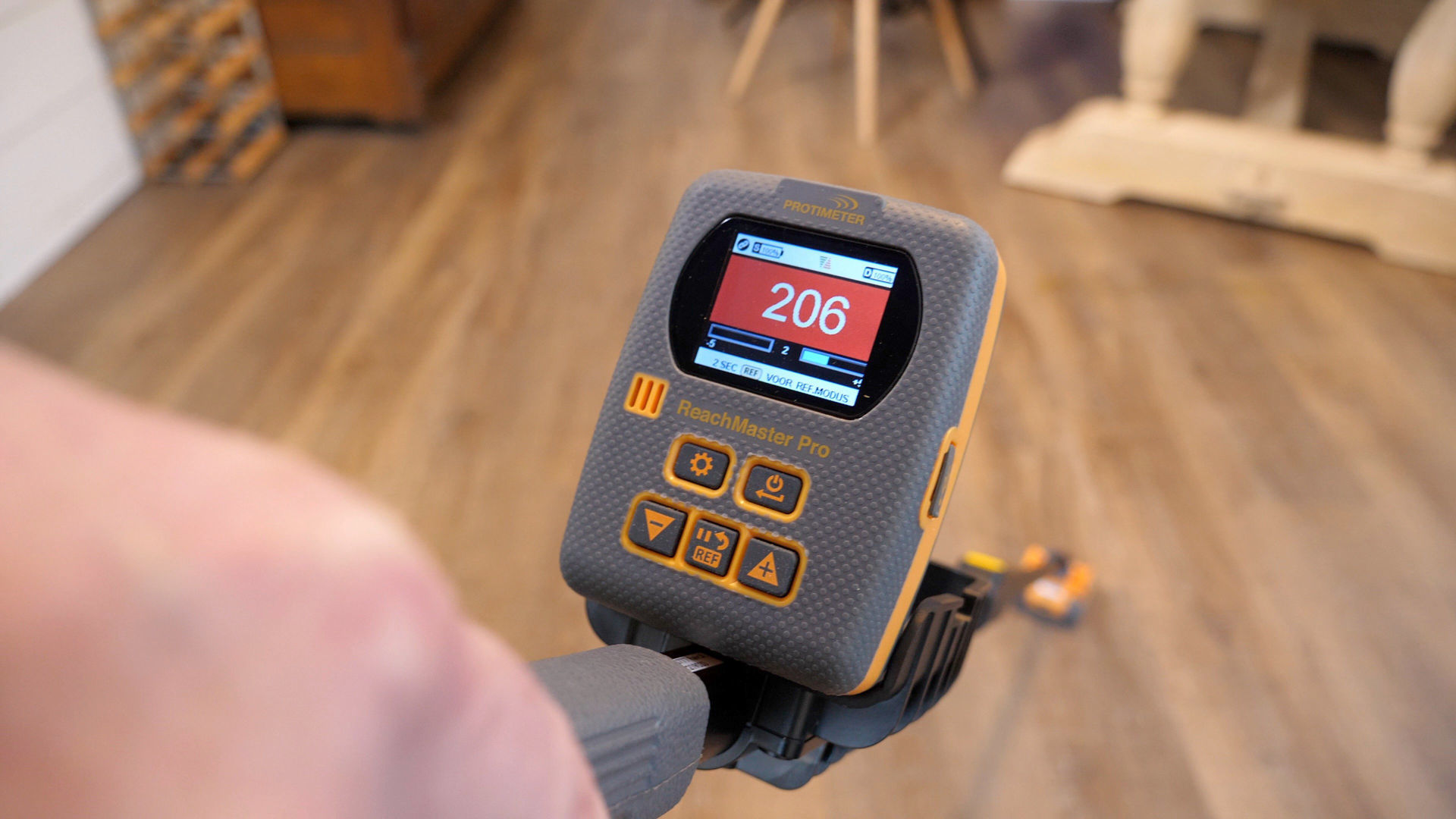

Protimeter Reachmaster Pro® BLD5777

Manufacturer: Protimeter
R17 200,00 excl VAT
No more climbing ladders, or working on your hands and knees, like you would with conventional moisture meters! The ReachMaster Pro is a non-invasive moisture meter enabling the rapid assessment of moisture conditions in buildings. Typical initial moisture surveys can increase inspection time by up to 60%, but the ReachMaster Pro makes measurements of floors, hard to reach walls and ceilings quick, safe and easy. Along with unrivaled depth of measurement and sensitivity adjustment. All Protimeter instruments have a two-year warranty.
+ -


  • Non-invasive moisture measurement
  • Wireless communication between sensor head and display
  • Telescopic handle adjusts from 685mm to 1219mm
  • Depth of Measurement: Up to 120cm - Varies with material under test
  • Color Display: Tilt-adjustable with red, yellow and green zones
  • Measurement Range: 60-999 ppm
  • Audible alarm & Auto shut-off
  • Adjustable sensitivity to focus in on moisture source
  • Multi-language menu & Simple field recalibration
  • Replaceable sensor wear plate with wear indicator on abrasion plate (1 spare included)
  • Battery Life: 80 hours on continuous operation
  • Battery Requirements: 4x AA in display unit, 2x AA batteries in sensor head
  • Firmware upgradeable by user as new features become available


  • Easy and quick moisture detection on floors, walls and ceilings
  • Eliminates working on hands and knees, as well as climbing ladders
  • Not adversely affected by surface moisture
  • Significantly quicker moisture assessment than handheld meters


  • Flood damage restoration
  • Flooring inspection
  • Home inspection
  • EIFS inspection
  • Rubber roof leak detection
  • Fiberglass marine hull inspection

Technical Specifications


Protimeter BLD5777 Reachmaster Pro

Operating Conditions

Temperature: 0°C to 50°C

Measurement Specifications

Non-invasive, instantaneous readings

Surface moisture is not adversely affected

Measurement Depth

Maximum: 120mm

(Varies with Material Under Test)

Minimum: 70mm

Measurement Range

60 ppm to 999 ppm

Power Requirements

Sensor Head: 2x AA Alkaline Batteries ~ 2700mAH

Display Module: 4x AA Alkaline

Batteries ~ 2700mAH

Battery Indications

Battery level indication on display unit

Battery low LED indication on sensor unit

Battery level indication on display

Gross Weight

700g - Instrument only

Regulatory Compliance


User Interface

Display Graphical LCD

Size: 50mm

Resolution: 176 X 220

Backlight (with adjustable brightness)

User application profiles

Sticky memory, last used application settings

Packing List

Protimeter BLD5777 Reachmaster Pro

Instruction Manual


Part Number



Display Unit - Reachmaster pro with screws


Sensor Unit - Reachmaster Pro with screws


Extension Pole - Reachmaster Pro


Hinge for Display - Reachmaster Pro with screws


Hinge for Sensor - Reachmaster Pro with screws


Battery Cap for Display - Reachmaster Pro


Battery Cap for Sensor - Reachmaster Pro


Abrasion Plate Kit - Reachmaster Pro with screws
