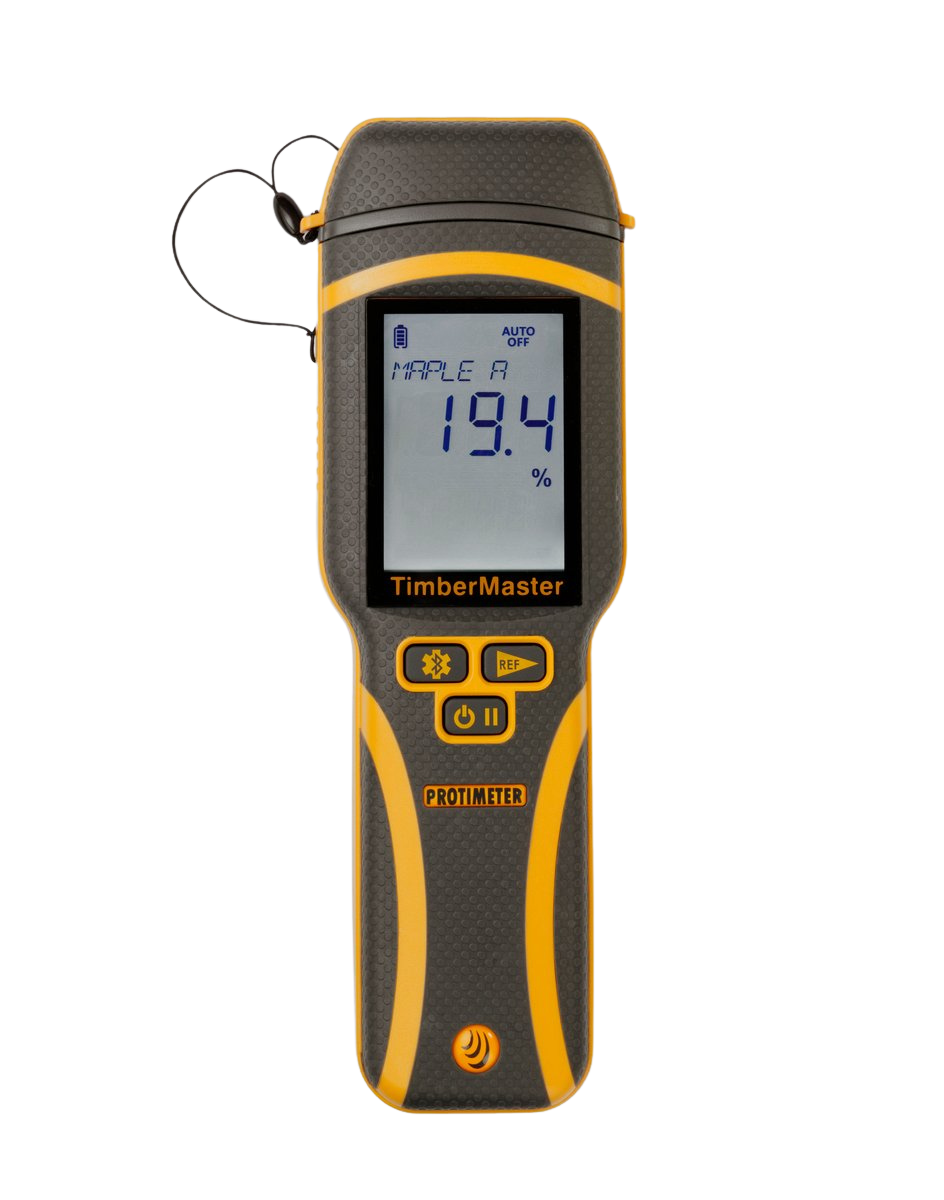

The Protimeter TimberMaster is an advanced moisture meter specifically designed for the timber industry. It is ideal for a range of quality control applications associated with moisture levels within all wood products
Features
Key Features
Measure 150 Wood Species
The Protimeter TimberMaster features eight calibration scales, enabling the user to take accurate moisture measurements in 150 wood species from around the world.
Simple Operation
Moisture measurements are commonly taken using the integral pin electrodes. User can select specific wood species from a list of 150 wood types to take accurate measurements.
Hammer Electrode
A slide-hammer electrode can be used with the Protimeter TimberMaster to measure sub-surface moisture levels (to a depth of 30mm) irrespective of surface moisture levels.
Technical Specifications
Operating Temperature Range
0°C - 50°C
Humidity
0 - 90% RH, non-condensing
Moisture Measurement Specifications:
Pin measurement range (% MC in wood)
6 - 99% (readings over 30% are relative)
Power
3V (2 x AA) 2700 mAh
Size
195 mm x 63 mm x 35 mm
Gross Weight
240g
Maximum Needle Depth for WME Pins
10 mm
Regulatory Compliance
CE, RoHS, ETL, FCC, UKCA, R-NZ
Warranty
2 years on manufacturing defects, excluding wearing parts/accessories
Packing List
Unit (BLD5675)
Heavy Duty Moisture Probe (BLD5060)
Carry Pouch
Instruction Manual
Protimeter Connect App (available on iOS and Android)
